Tracing

Distributed tracing is push-based. Send spans to POST /api/traces/v1/otlp, then open /app/traces. Search: GET /api/app/traces/search. Correlation: GET /api/app/correlation (type: trace, span, session, request).

From an empty workspace to your first searchable trace. Tracing is included on Free and Pro (span and retention limits apply).

1. 1

   Step 1: Open Tracing

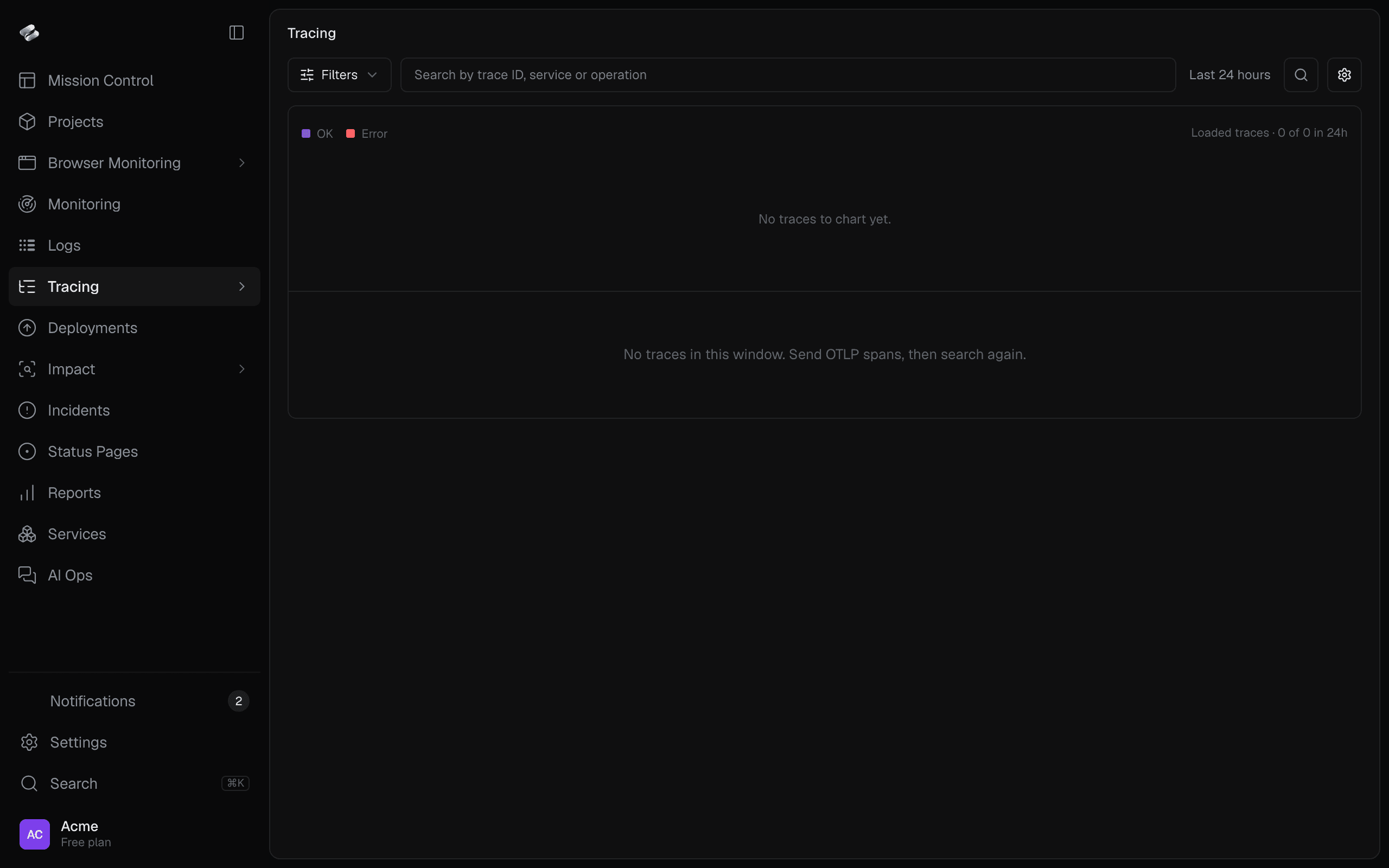

   Choose Tracing in the sidebar. Until a source sends accepted OTLP spans the explorer stays empty — Mydle never shows sample traces.



2. 2

   Step 2: Open Sources & ingest

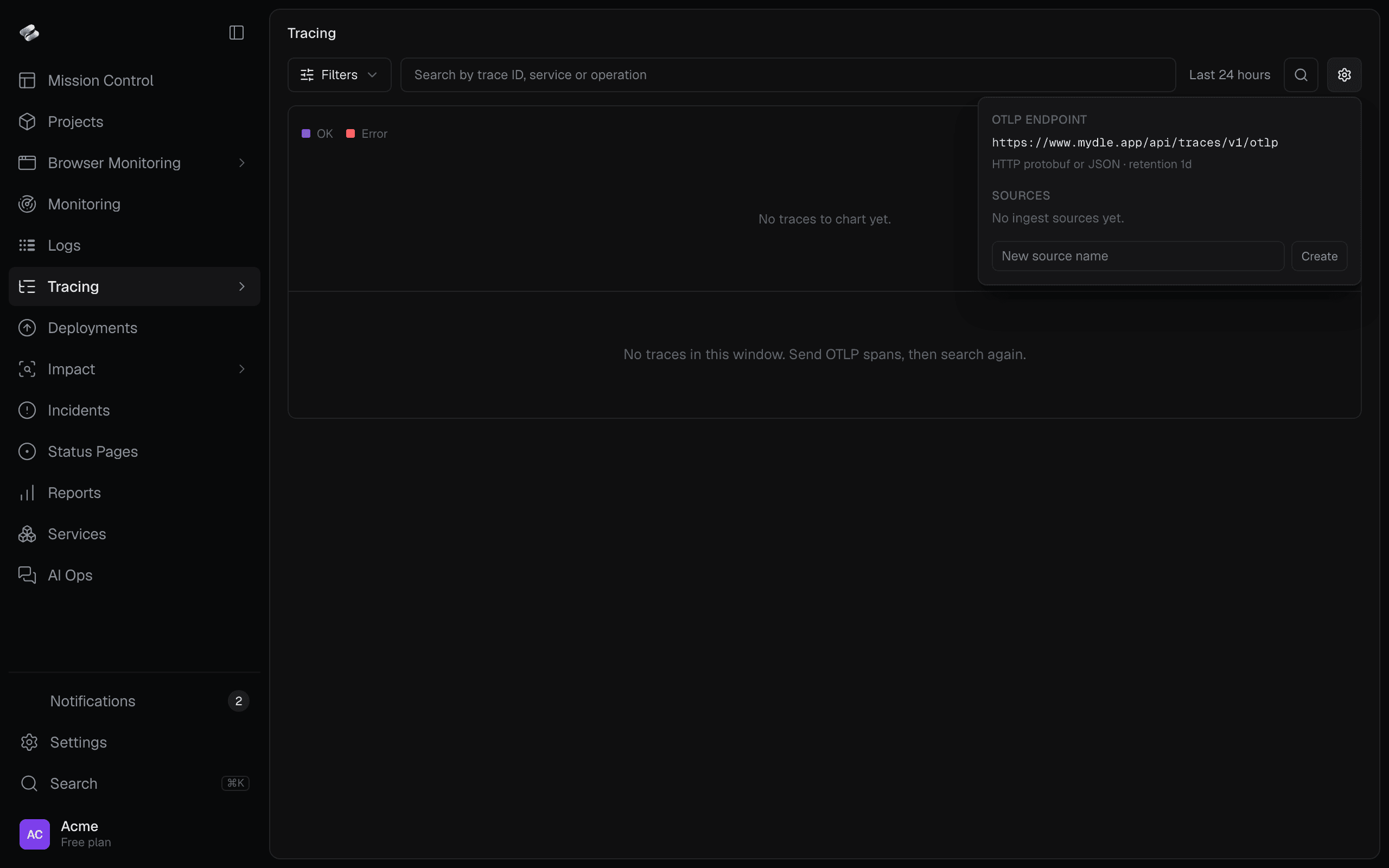

   Click the gear button at the right end of the toolbar (Sources & ingest). The panel shows the OTLP endpoint, retention, and your ingest sources.



3. 3

   Step 3: Create a source

   Under Sources, enter a name for the system that will export spans — for example checkout-api — and click Create. Use one source per service so you can rotate tokens independently.

4. 4

   Step 4: Copy the token

   Mydle shows the source token (tt_…). Shown once. Store it now. Copy it and keep it as a server-side secret, for example MYDLE_TRACE_TOKEN. Afterwards only its prefix is listed.

5. 5

   Step 5: Send your first spans

   Point an OpenTelemetry OTLP/HTTP exporter at Mydle. Prefer protobuf over JSON. gRPC is not supported.

   OTEL_EXPORTER_OTLP_TRACES_PROTOCOL=http/protobuf
   OTEL_EXPORTER_OTLP_TRACES_ENDPOINT=https://www.mydle.app/api/traces/v1/otlp
   OTEL_EXPORTER_OTLP_TRACES_HEADERS="Authorization=Bearer $MYDLE_TRACE_TOKEN"
   OTEL_EXPORTER_OTLP_TRACES_COMPRESSION=gzip

   Full Node.js exporter setup, limits, and retry rules: OTLP Ingestion.

6. 6

   Step 6: See traces arrive

   Go back to Tracing and click Search (or wait for the default window). New traces appear with time, service, status, root operation, and duration. Click a row to open the detail panel with the span tree.

7. 7

   Step 7: If nothing appears

   • Confirm the exporter uses http/protobuf (or JSON) against /api/traces/v1/otlp — not gRPC.
   • Check for 401 (wrong or revoked token) or 429 (monthly span / span-data quota).
   • Empty explorers mean no accepted spans in the window — not a fake green service map.

OTLP HTTP JSON (and compatible shapes) with a tracing source token (tt_…). Only accepted spans are stored. Key fields: trace_id, span_id, parent_span_id, session_id, correlation_id / request identity, service, environment, release.

Postgres is always the primary store for customer traces. When ClickHouse is configured, Mydle dual-writes spans and can query the secondary store for list/detail — optional, fail-open on write. When ClickHouse is not configured, product views still use Postgres.

Mydle's own services export with OpenTelemetry: service names mydle-web and mydle-worker, BatchSpanProcessor, ParentBased + TraceIdRatioBased sampling, fail-open export (init / export failures never throw into request handlers). Platform OTel is not merged into the customer correlation graph.

Included on Free (50,000 spans / month, 1-day retention) and Pro (1,000,000 spans / month, 7-day retention). Span data is also capped at about 1 KB per included span; whichever limit is reached first stops ingest with 429 QUOTA_EXCEEDED until the month resets. Pro can add +1,000,000 span add-ons.
